[CHTM4521-0302] Aluminum 0.032" Kynar - Black Chatham Conductor Head The Chatham conductor head offers a timeless, clean design that pairs beautifully with smooth square downspouts. A favorite among homeowners. Made in USA. Easy online ordering. CHTM4521-0302

The Chatham Leader Head | Conductor Head

Product SKU :

169.95 204.95 USD 169.95

169.95

/ ea
  • Material / Color
  • Outlet Size
  • Sealant

This combination does not exist.

ADD TO CART BUY NOW

Select Variant Min. Quantity Price per Unit

Terms and Conditions
30-day money-back guarantee
Lead Time: 14.0 Days

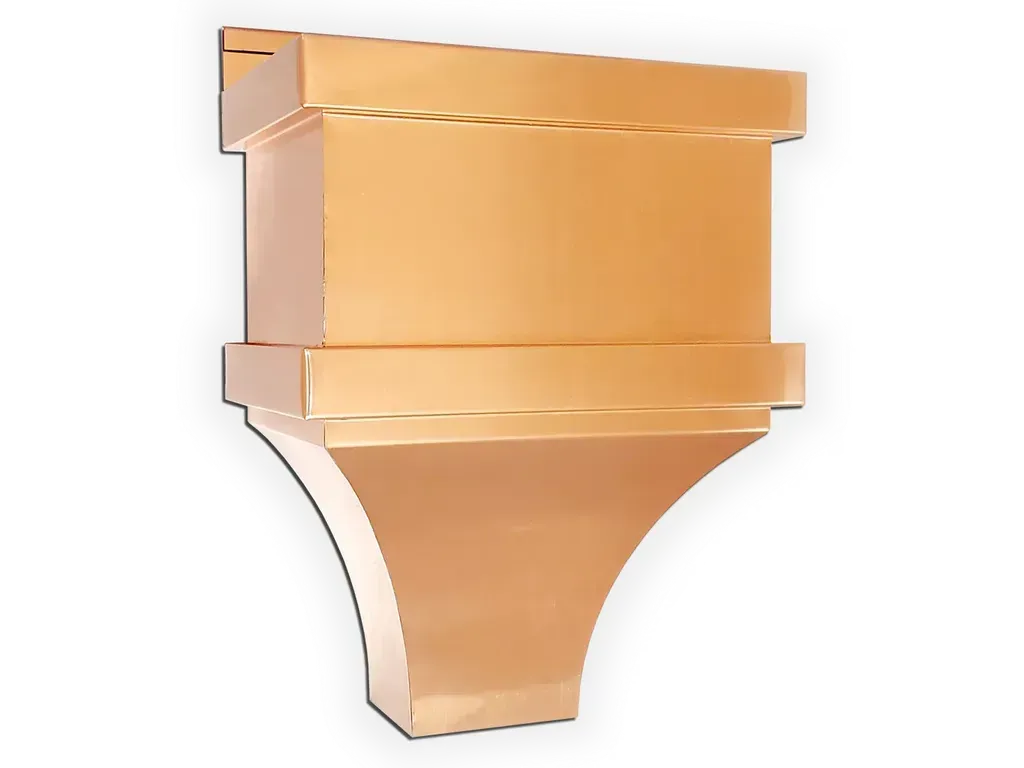

The Chatham Conductor Head

Available in copper, zinc, galvalume plus, colored kynar aluminum and galvalume

The Chatham conductor head / collector box is a favorite with our customers. It features a very classic, clean design that pairs perfectly with smooth square downspouts.
Please contact us for a custom size, color or material, such as pre patina copper, lead coated copper, stainless steel or freedom gray.

Adding conductor heads to a gutter system will enhance the beauty and architectural style on a building. They are traditionally installed under the soffit to let air into the line which then prevents excess noise (gurgling) and helps stop vacuum lock. They are also used for through wall scuppers and roof drains.

Specifications

  • Width: 5.25", 6.25" & 7.25"
  • Depth: 9.625", 10.625" & 11.625"
  • Height: 13.75"

Downspout Options

  • 2"x3", 3"x4" & 4"x5"

Availability

  • Made to order
  • Made in the USA

CA Residents: Prop 65 Warning(s)
Submittals & Downloads
Color and Material Options

Kynar® Aluminum & Galvalume Steel

Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Dark bronze kynar aluminum and galvalume

Dark Bronze

Medium bronze kynar aluminum and galvalume

Medium Bronze

Almond kynar aluminum and galvalume

Almond

Bone white kynar aluminum and galvalume

Bone White

Copper penny kynar aluminum and galvalume

Copper Penny

Charcoal kynar aluminum and galvalume

Charcoal

Special Order Colors

Special Order colors require a minimum 2000 sqf. purchase for coil. Most colors have a 1 sheet minimum per order. Extra freight charges apply.

Patina green kynar aluminum and galvalume

Patina Green

Teal kynar aluminum and galvalume

Teal

Hemlock green kynar aluminum and galvalume

Hemlock Green

Forest green kynar aluminum and galvalume

Forest Green

Hartford green kynar aluminum and galvalume

Hartford Green

Evergreen kynar aluminum and galvalume

Evergreen

Hunter green kynar aluminum and galvalume

Hunter Green

Arcadia green kynar aluminum and galvalume

Arcadia Green

Military blue steel kynar aluminum and galvalume

Military Blue

Berkshire blue kynar aluminum and galvalume

Berkshire Blue

Graphite kynar aluminum and galvalume

Graphite

Interstate blue kynar aluminum and galvalume

Interstate Blue

Slate blue kynar aluminum and galvalume

Slate Blue

Award blue kynar aluminum and galvalume

Award Blue

Burnished slate kynar aluminum and galvalume

Burnished Slate

Aged bronze kynar aluminum and galvalume

Aged Bronze

Mansard brown kynar aluminum and galvalume

Mansard Brown

Burgundy kynar aluminum and galvalume

Burgundy

Terra cotta kynar aluminum and galvalume

Terra Cotta

Cardinal red kynar aluminum and galvalume

Cardinal Red

Colonial red kynar aluminum and galvalume

Colonial Red

Midnight bronze kynar aluminum and galvalume

Midnight Bronze

Musket gray kynar aluminum and galvalume

Musket Gray

Sierra tan kynar aluminum and galvalume

Sierra Tan

Sandstone kynar aluminum and galvalume

Sandstone

Slate gray kynar aluminum and galvalume

Slate Gray

Cityscape kynar aluminum and galvalume

Cityscape

Granite

Stone white kynar aluminum and galvalume

Stone White

Anodic clear kynar aluminum and galvalume

Anodic Clear

Silversmith kynar aluminum and galvalume

Silversmith

Silver kynar aluminum and galvalume

Silver

Champagne kynar aluminum and galvalume

Champagne

Zinc colored kynar aluminum and galvalume

Zinc

Weathered zinc colored kynar aluminum and galvalume

Weathered Zinc

Aged copper colored kynar aluminum and galvalume

Aged Copper

Weathered steel kynar aluminum and galvalume

Weathered Steel

More Information

Kynar coated material is supplied by Petersen (Pac-Clad).
Colors are mostly available in 0.032″ and 0.040″ aluminum as well as 24 gauge galvalume (steel).
Some colors are available in 0.050″ and 0.063″ aluminum as well as 22 gauge galvalume.
Material available in sheet or coil format.
Pac Clad Sheets measure 48″ x 120″. No minimum purchase, but fees apply.
Standard coil widths are 20″ and 24″. Coils can be cut to any custom with from 48″ and under. Fees apply. 2000 sqf minimum purchase.
To learn more about Kynar® PVDF coated materials, please click here.

Downloads / Color Charts

 PDF – PAC CLAD – Kynar Aluminum and Galvalume Steel Color Chart

Color Chart – To obtain a physical color chart or color chips, please visit this link.

Unpainted Stocked Materials

Bonderized Steel

Bonderized Steel

Copper

Copper

Freedom gray

Freedom Gray

Galvalume

Galvalume Plus

Lead coated copper

Lead Coated Copper

Mill finish aluminum

Mill Finish Aluminum

Stainless steel

Stainless Steel

More Information

Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.

Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.

Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.

Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.

Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.

Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.

Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.

Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.

Downloads / Color Charts
Looking for a custom color not listed? Please EMAIL your request with all information including the metal manufacturer for a quote.

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
